BIGMASTER

The universal high performance machine for industry and trade

Use | The BIGMASTER series is the ideal solution for processing of all planed goods in high-performance sectors such as lumber, construction timber (CT), duo / trio beams, lamella, glued laminated timber (glulam) and profile boards. The strong feed system means the BIGMASTER series is suitable for both wet and dry goods.

Equipment | The BIGMASTER is equipped with additional vertical and horizontal profile and sawing units, rotor planer shafts, automatic jointers and oscillating work shafts. Thus a perfect surface result is ensured even at high feed rates. Other options can easily be added due to the modular design.

Use | The extremely robust machines are designed for multi-shift operation and continuous loads and are both safe and comfortable to operate. They can be used either as single units or in the plant network.

Specifications | BIGMASTER

Working widths:  Up to 630 mm
Working heights:  Up to 300 mm
Feed rates:  Up to 250 m / min
Control:  Siemens S7 PLC with Profinet connection
Spindle assembly:  According to your wishes
Areas of operation:  Pre-planing
  Lamella planing
  Glulam finished planing
  Production of CLT
  Production of duo / trio beams
  Production of profile goods
  Lumber planer



Learn more about the BIGMASTER planer in our application video.

You can download our BIGMASTER brochure here.

Wide planer | With the BIGMASTER series, REX offers a wide planer for laminated timber construction engineering. It can comfortably process wide components, whether straight or curved, up to a work width of 2600 mm and height of 600 mm. The wide planer machines have particularly heavy and massive feed systems, a swivel head sunk into the ground and vertical shafts with special float and copy functions for four-sided planing of bent, curved components with excessive height.

You can download our wide planer brochure here.

BIGMASTER-Gallery

BIGMASTER 8-41 -K- with vertical feed

BIGMASTER with profiling spindles

BIGMASTER 8-31 -K-

BIGMASTER 4-31 -K- lamella planer


BIGMASTER with scoring saw

BIGMASTER 5-31 -K- without own feed

BIGMASTER cutting saw with bevel device

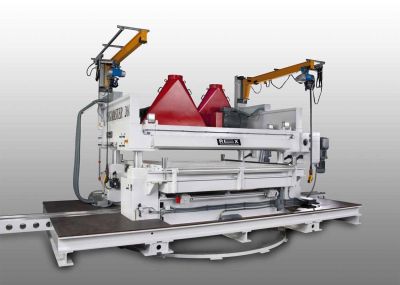

BIGMASTER wide planer

BIGMASTER wide planer with crane
